GA2688-L Long arm cylinder bed extra heavy duty compound feed lockstitch sewing machine
Compound feed mechanism and long arm cylinder bed ;
Powerful steady feeding enables to sew multiply heavy duty material;
with nice and beautiful stitches easily;
Large shuttle hook and large bobbin capacity offers high efficiency in sewing production;
Presser foot lifting height can be up to 23mm;
Download:
Leaflet:GA2688-L
GC0618-1 single needle compound feed(Horizontal hook) lockstitch sewing machine
1.Max.speed 2000RPM
2.Max.stitch length:9mm
3.Needle bar stroke:33.2mm
4.Presser foot lift height:8mm by hand,15mm by knee
5.Needle DPx17 18#-25#
6.Automatic lubrication
GC1342 Double needles compound feed auto lubrication cylinder bed lockstitcher
Stitch length can reach 11mm ;
More powerful on feeding, presser foot lifter add 2mm higher;
Automatic oil lubrication design,reduce wastage of spare arts,reduce sewing noise;
New design on tooth bracket which make its service life for longer;
Download: Leaflet GC1342
GC1765 Series double needles split needle bar post bed compound feed lockstitch sewing machine
1.Juki type model ;
2.Fully automatic lubrication system;
3.Big hook with safety clutch device;
4.Design for corner sewing;
5.Suitable for leather products,such as sofa,bag,car seat,upholstery,ect;

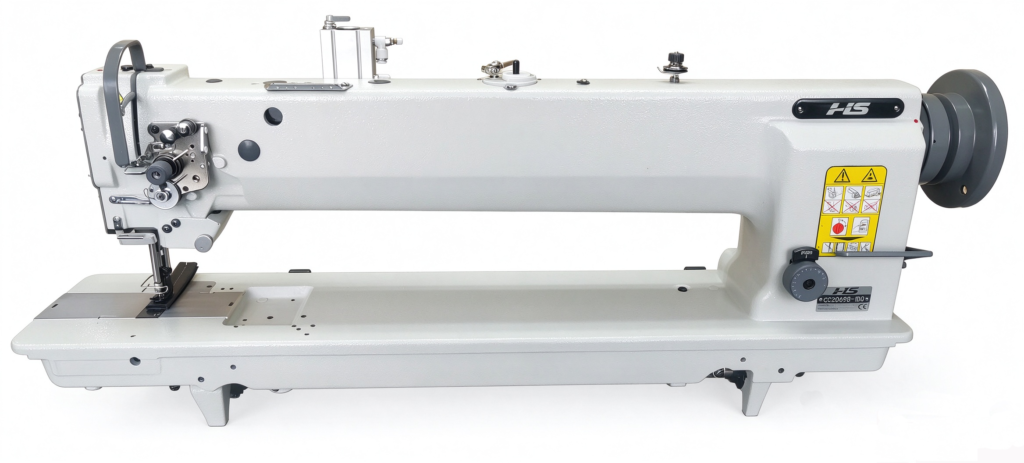

GC20698 25inches(635mm) long arm compound feed lockstitch sewing machine
1.Long arm(635mm);
2.D trimmer,Q for PFL;
3.Bobbin winder on top of machine;
4.Suitable for car seat,safety belt,tent,parachute,sails etc.,
5.For double needles:Stardard needle gauge:6.4mm,Optional: 3.2,4.8,8,9.5,12.7,16,19,25.4mm
Specify when ordering
GC2263 Brother type compound feed cylinder bed sewing machine
1.Automatic lubrication;
2.S type presser foot design is more suitable for corner sewing;
3.Compound feed strongiand heavy material sewing performance,Suitable for cylinder and curved articles;
4.Cylinder bed diameter 72mm.
GC24608 SERIES HIGH POST COMPOUND FEED LOCKSTITCH SEWING MACHINE
1.Classic design high post compound feed lockstitch;
2.Widely use on car seat ,bag/luggage,boots,etc;
3.Post bed height:178mm
4.Double needle needle gauge.Standard 8mm.9.5mmSpecial:4.8mm,6.4mm.12.7mm Specify when ordering
5.GC24608-20-18Z 18inches long arm;Suitable for sofa,car seat mat,etc,Direct drive,PFL,auto backtacking;Standard needle gauge 8mm,optional:9.5mm
GC8713 single needle cylinder bed compound feed lockstitch sewing machine
1.new designed appearance;
2.sealed arm bed at back;
3.small cylinder bed and big hook

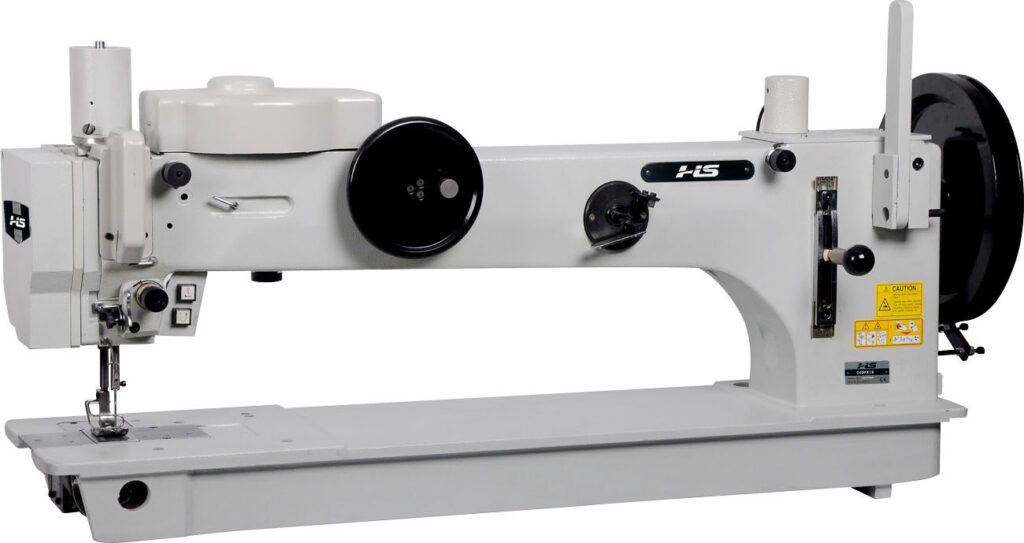

GG80018 series Single Needle 30″ Long Arm Extra Heavy Duty Zigzag Sewing Machine
1.Machine with 3 cams as the standard kit for 3 different zigzag stitches;
2. Cams changed easier;
3.Large barrel shuttle hook and large bobbin;
4.30″long arm with two different height working space;
5.Usually for tents and sails;

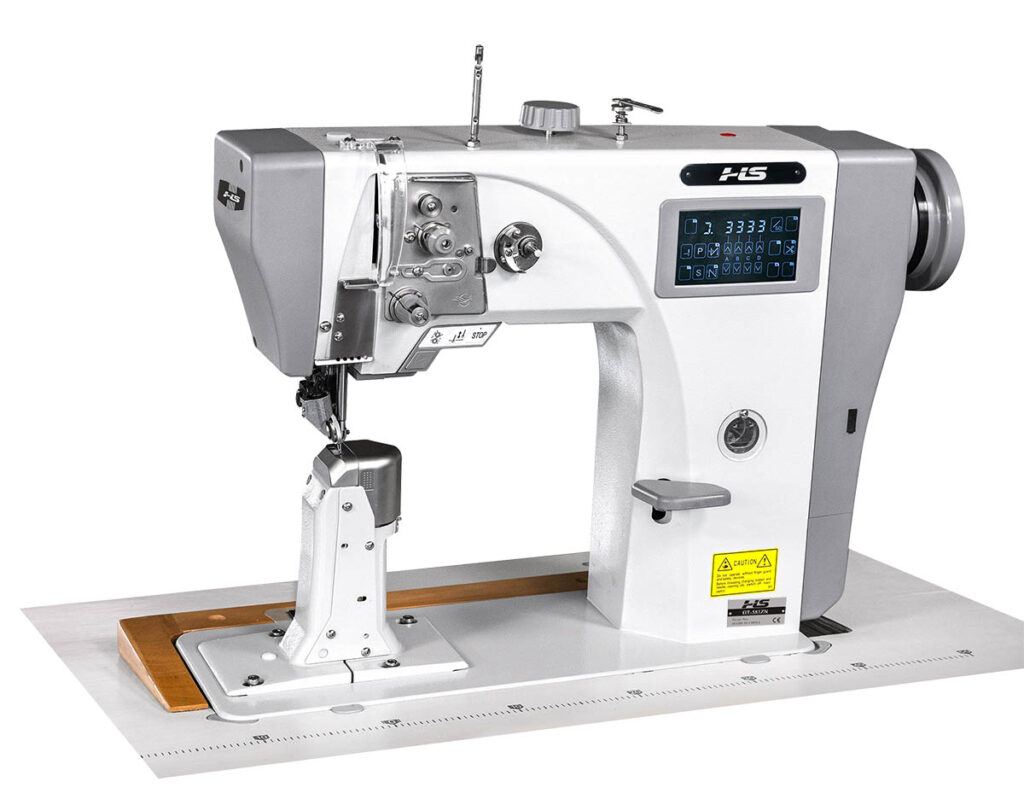

GT-581ZN,582ZN series direct drive stepper type high post compound feeding with roller lockstitch sewing machine
1.Direct drive stepper motor type;
2.Suitable for sewing leather shoes,sport shoes,casual shoes,packaging,gloves and hats;
3.European design apperance;
4.Standard stitch gauge for double needle:2.4mm;
Optional:1.6,1.8,2mm,specify when ordering;
