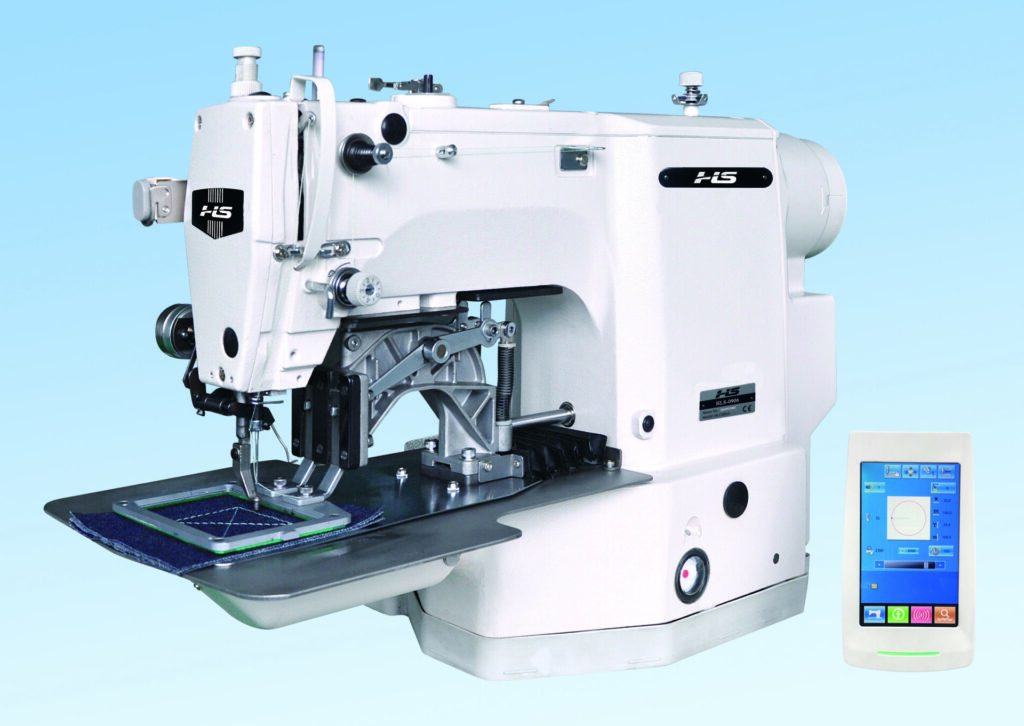

HLS-0605/0906 pattern sewing machine
1.Standard with touching screen,;
2.suitable for small patterns, efficiency more than 15% higher
3.Dahao latest system

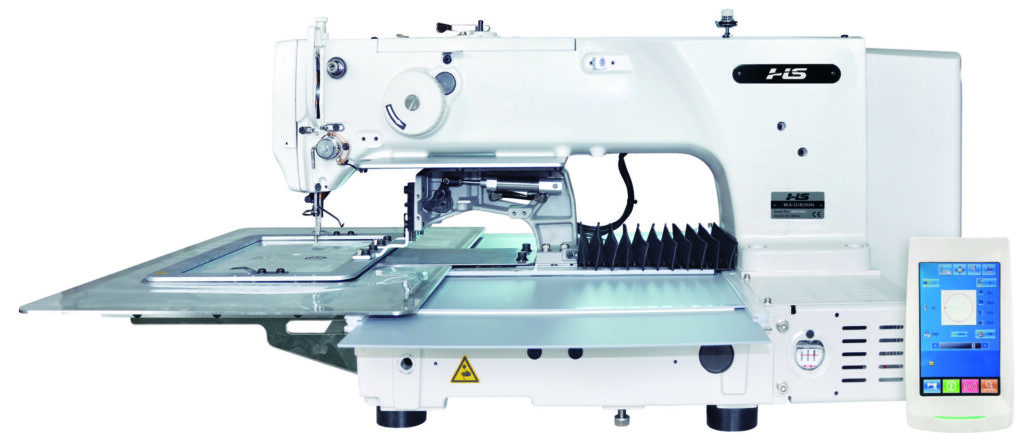

HLS-210E/221E Juki type pattern machine with shuttle hook
1.Juki type,shuttle hook,better sittches for apparel;
2.Dahao separated new control system;Touching screen, easy and quick for pattern programming;
3.Taiwan guider;
4.The upper and lower shaft connecting rods and gear seals,noise reduction of more than 15%,Gear life doubled;
5.Equipped with an independent middle presser foot stepper motor;
6.Optional:thread broken inspection,double tension,sliding/rotating presser foot device;
Download:HLS pattern sewing

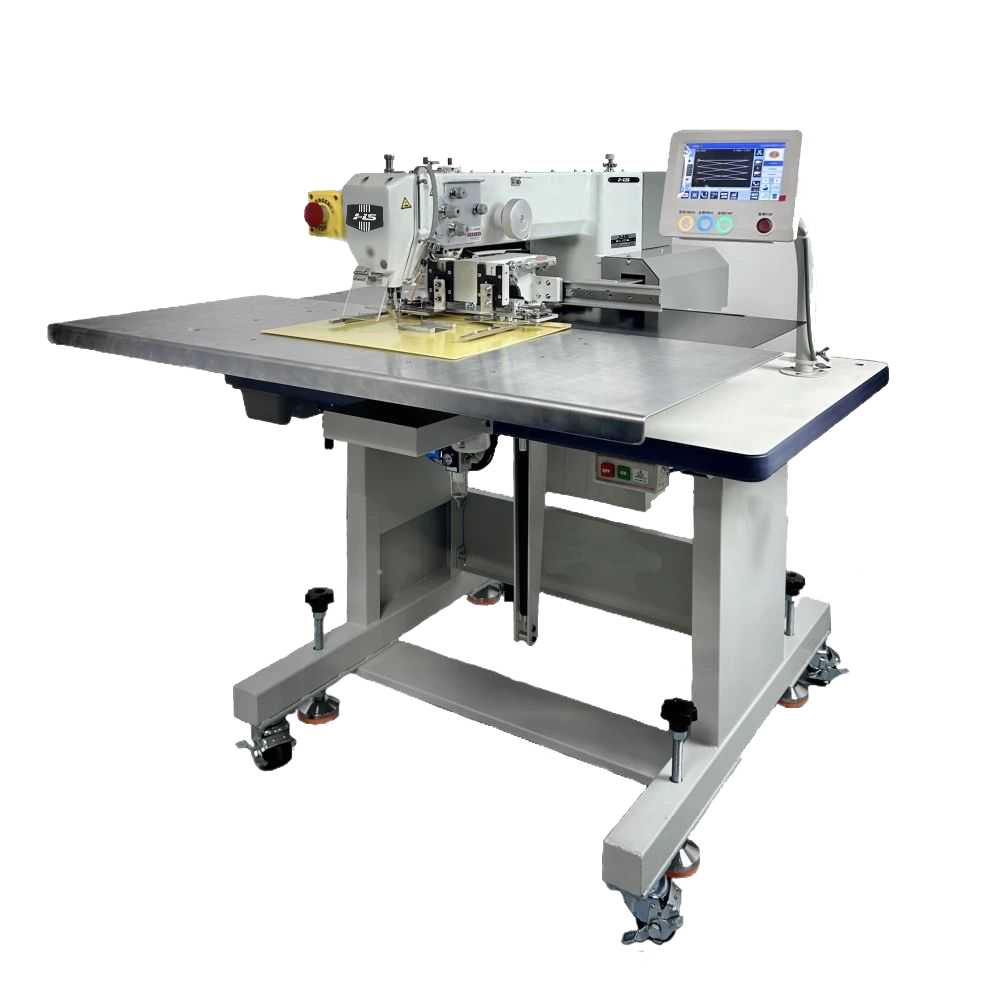

HLS-3020HP series heavy duty pattern sewing machine 30*20
1.HLS-3020HP-2 with 2times hook,-3 with three times hook,-6 with six times hook;
2.New arm bed to be longer and 23KGS heavier compared with old version,more stable for sewing;
3.Upgrade pneumatic durkopp alder type thread tension device to decrease thread broken more than 20%;
4.Use 15mm guider to instead 9mm,and Y direction upgrade 4pcs guiders while before 2pcs,. The accuracy is improved by more than 90%,the durability is enhanced by more than 50%, and the load-bearing capacity is increased by more than 80%;
5.Upgrade transmit optimize control system;
6.The direct connection ratio of the motor is increased from 1:1 to 1:2.5, the power is enhanced by 70%, high-speed sewing is more precise, and the vibration and noise are reduced by 20%;
7.Fast change module;
HLS-311G/326G/342G/352G/364G Brother type pattern sewing machine(Shuttle Hook)
1.Classic Brother type,can choose pneumatic or electric type;
2.Dahao separated new control system,Touching-screen,easy and quick for pattern programming，Support USB disk input;
3.Taiwan guider，Shuttle hook,flat blade pull rod and simple trimmer structure,shorter trimmer ending,Dual axis feeding instruction,7pcs feeding guide rails;
4.Gear using DLC process(Diamound like carbon coating);
5.Max.needle #25
6.Optional:thread broken inspection,double tension,sliding/rotating presser foot device,cap visor device,three times hook,etc
Download:
HLS pattern sewing
HLS-326G-MM
HLS-326G-MA

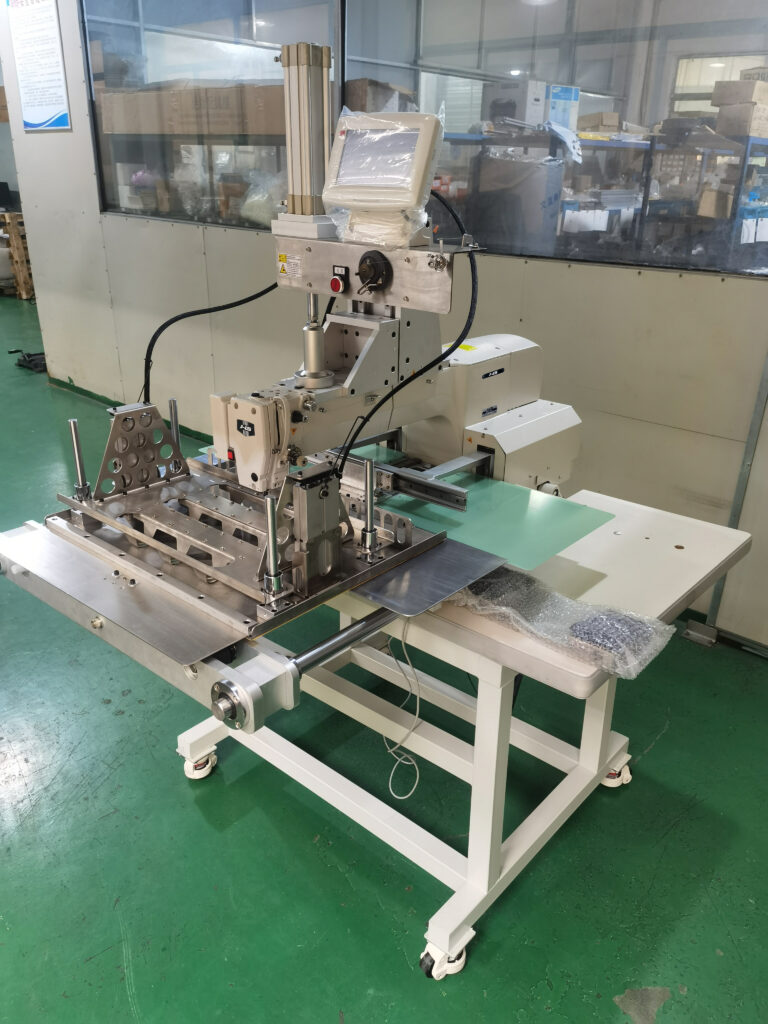

HLS-3523 pattern sewing machine with movable head for cushion and pillow
1.Brother type,shuttle hook
2.lifting head
3.module of cushion/pillow can be changed

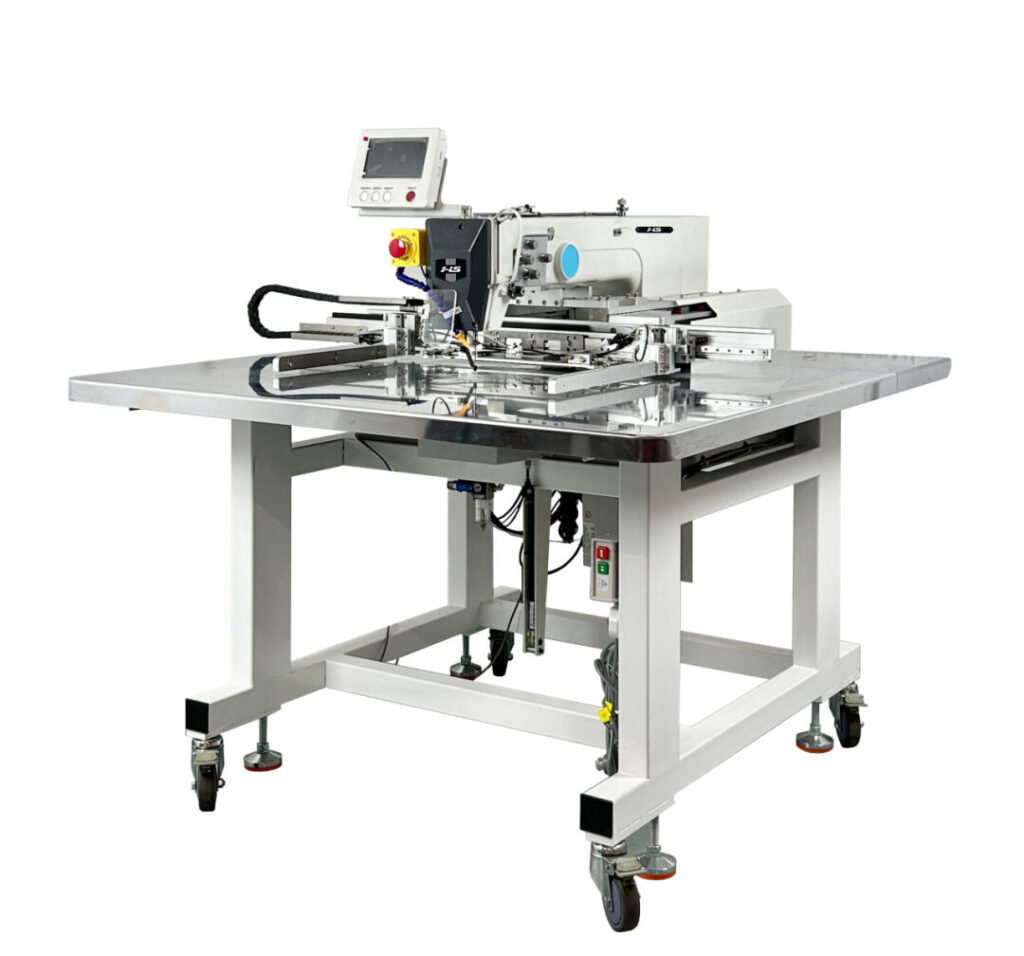

HLS-6040HP-6 6times hook heavy duty pattern sewing machine 60*40cm
1.with 6times hook;
2.New arm bed to be longer and over 20KGS heavier compared with old version,more stable for sewing;
3.Upgrade pneumatic durkopp alder type thread tension device to decrease thread broken more than 20%;
4.Fast change module;

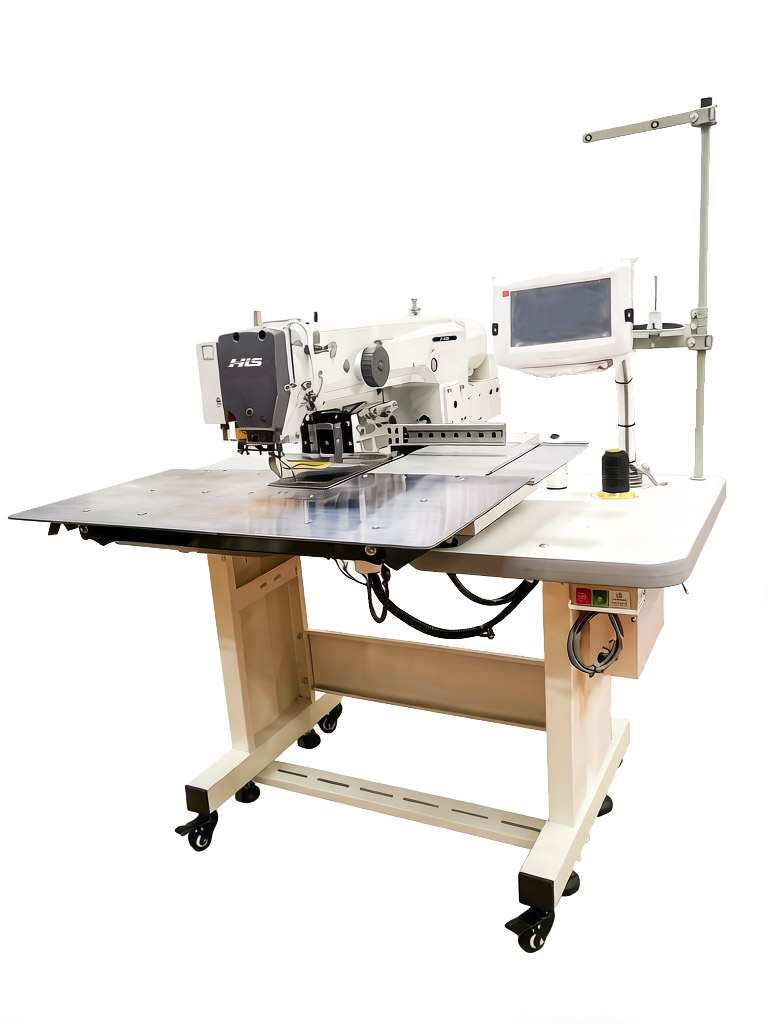

HLS-G3520R-5 5times hook pattern sewing machine for jumbo bag
1.Widely use on Jumbo bag belts;
2.Dahao separated new control system;Touching screen, easy and quick for pattern programming;
3.Working space:X30cm Y20mm;
4.Designed as MITSUBISHI type;
5.5 times heavy duty hook;High speed,high efficiency;
Downlead:HLS-G3520R-5
HLS-G3520R/4030R/5030R/6040R Mitsubishi type pattern sewing machine(Hook)
1.Classic Mitsubishi type,easy opeartion and maintanence;
2.Dahao separated new control system;Touching screen, easy and quick for pattern programming,Support USB disk input;
3.Taiwan guider,Single axis feeding structure,5pcs feeding guide rails;
4.Optional:thread broken inspection,double tension,sliding/rotating presser foot device,cap visor device,three times hook,etc
Download:HLS pattern sewing

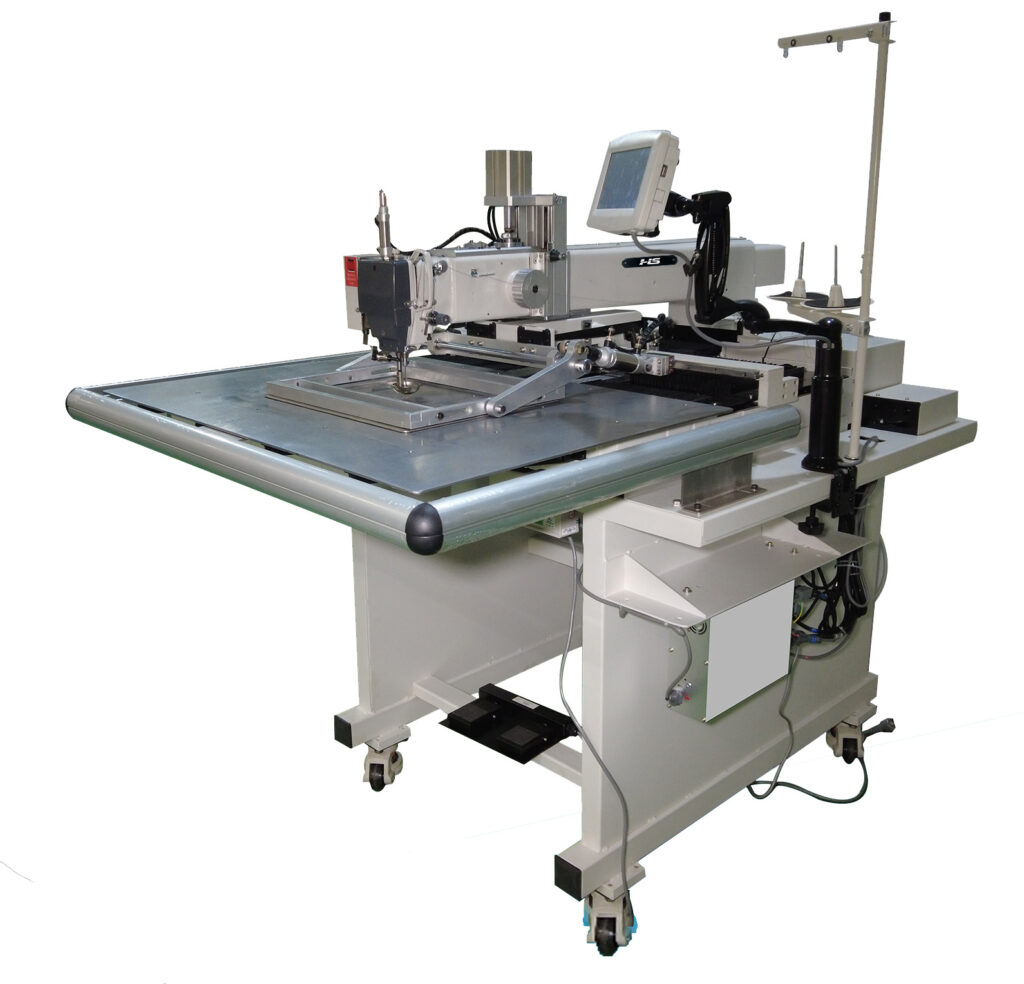

HLS-G4030R(M) Mattress Automatic Trade Mark Pattern Sewing Machine
Upgrade on Mitsubishi type pattern sewing machine;
Dahao integrated system;Touching screen, easy and quick for pattern programming;
Lifting height is 5cm,Sewing scope:40X30cm;
Hook;
Space for putting material 46.5cm;
Volatage 220V,1phase,Power:1000Watt;
G.W 250KGS,Dimension 150*150*150cm;
Download:For trade mark mattress 4030

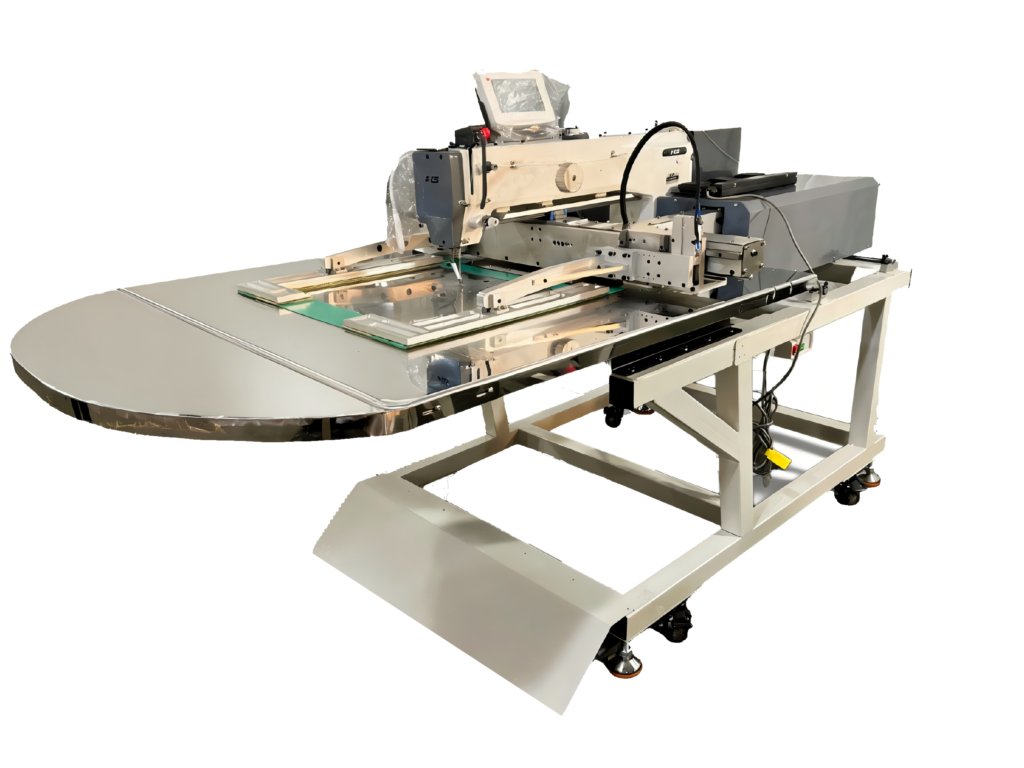

HLS-G5040RH-S two clamps pattern sewing machine for jumbo bag
Sewing area: 500mm in X (Horizontal) x 400mm in Y (Vertical)
– Max sewing speed: 1800 r.p.m
– Speed preset: 100-2700 rpm at discretion
– Stitch length: 0.1-12.7mm
– Thread take-up lever stroke: 105mm, Needle bar stroke: 46.8mm
– Needle size: DYx3-7*27# (standard), Hook: Rotating hook (6 times)
– Main motor: 220V/750W servo motor
