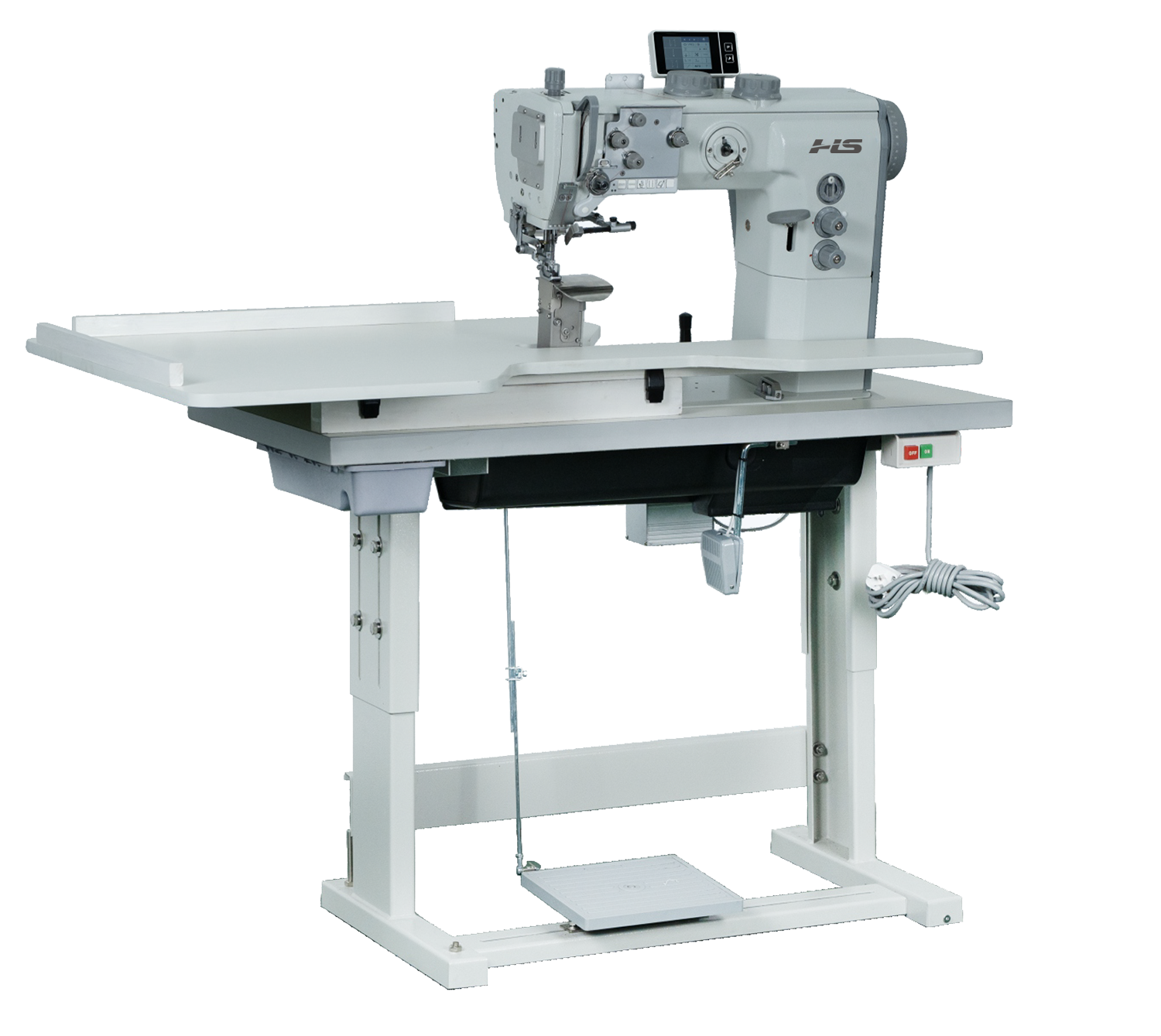

670 Computerized Sleeve Lining Sewing Machine

LEAFLET DOWNLOAD:670

Application:
Used for sewing sleeve lining and cotton strips in suits

Production Performance:

  • 1 person operates 1 machine
  • 160 – 200 Sleeve lining through the shoulder pad / 480 min
    400 – 460 Pairs of sleeve heads wadding stripes / 480 min
  • Production efficiency varies depending on sewing conditions ( length, stitch pitch, etc. )

Characteristics:

  • The switchable stitch loosening device ,prevents squeezing when the shoulder pad is sewn through. Thus, the pad retains its volume and soft touch
  • The fullness value ,is mechanically adjustable and depending on the application – it can be switched on in the upper or lower fabric by push button
  • 5-function key bar ,with quick access and favorite key for the functions : Fullness on top, fullness on bottom,2nd foot stroke, 2nd stitch length, automatic material thickness detection ,edge trimmer ON / OFF
  • Large three-piece vertical hook , with 60% higher bobbin thread capacity for reduced bobbin changes. The optimized hook allow slowest thread tension
  • The standard swiveling edge guide is comfortably adjustable in seam width
