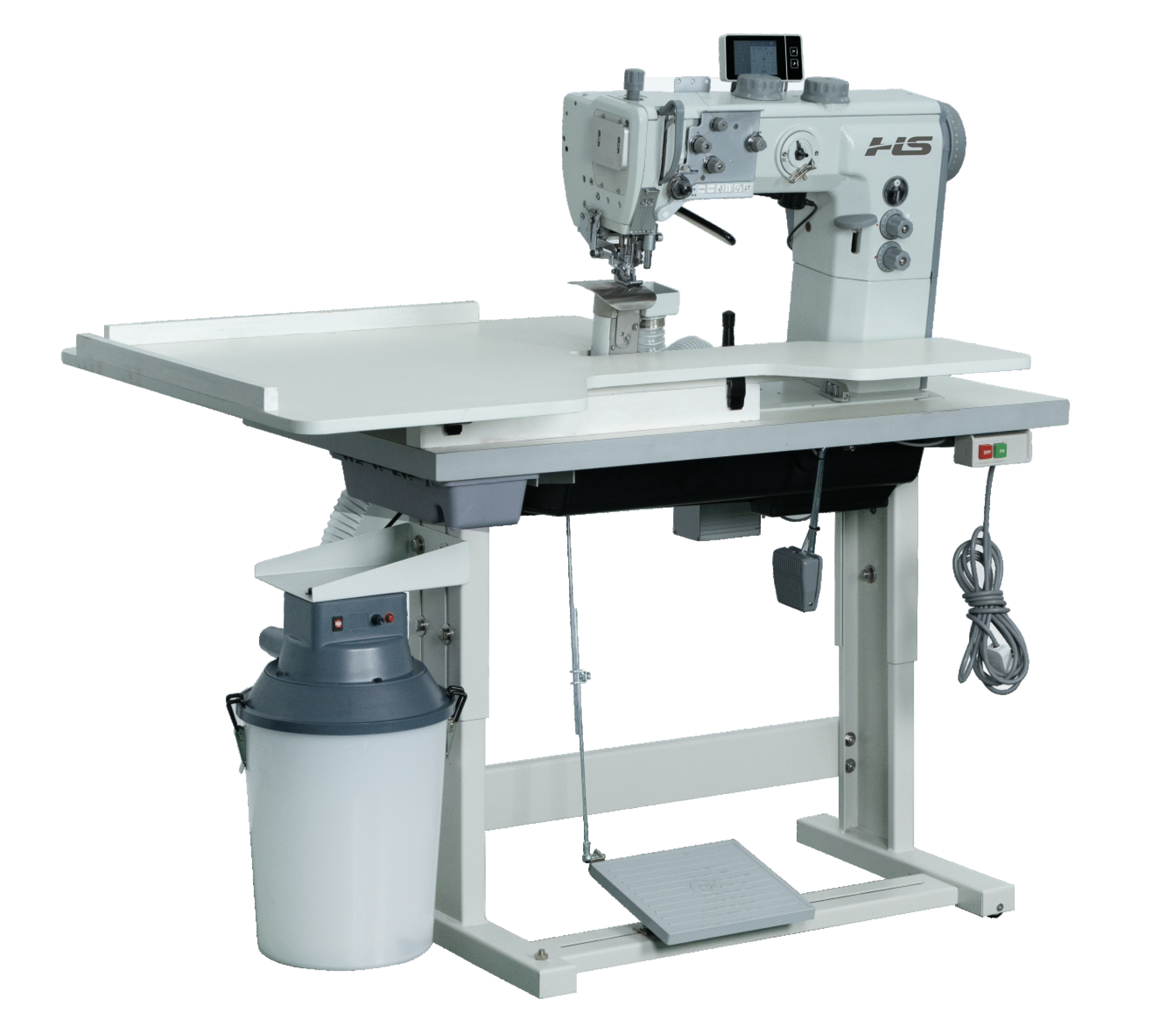

680 Computerized Shoulder Pads And Trimming Edge

DOWNLOAD LEAFLET:680

Application:
Machine used for attaching the shoulder pad and armhold lining onto the armhole,as well as trimming the remaining material perfectly

Production Performance:

  • 1 person operates 1 machine
  • 280 – 340 Body linings / 480 min
    Pairs of sleeve heads / wadding stripes / 480 min
    230 – 275 Pairs of ironed shoulder pads / 480 min
  • Production efficiency varies depending on sewing conditions ( length, stitch pitch, etc. )

Characteristics:

  • The switchable stitch loosening device ,prevents squeezing when the shoulder pad is sewn through. Thus, the pad retains its
    volume and soft touch
  • The fullness value ,is mechanically adjustable and depending on the application – it can be switched on in the upper or lower fabric by push button
  • Adopting a large capacity silent suction device,Strong suction, high power, can always keep the workbench clean, equipped with a silencer, will not disturb work due to high – power suction sound.
  • 6-function key bar ,with quick access and favorite key for the functions : Fullness on top, fullness on bottom,2nd foot stroke, 2nd stitch length, automatic material thickness detection ,edge trimmer ON / OFF
  • Large three-piece vertical hook , with 60% higher bobbin thread capacity for reduced bobbin changes. The optimized hook allow slowest thread tension
