GC8421/8721-LA420/520/650/860
Twin needle direct drive sewing machine, small hook / large hook long arm 420MM / 520MM / 650MM /860MM
TECHNICAL SPECIFICATION
| T-8421-LA420/520/650/860 | T-8721-LA420/520/650/860 | |
| Arm pocket size | 420mm*125mm，520mm*125mm，650mm*125mm，860mm*125mm | |
| Rotary hook | Small hook | Large hook |
| Max sewing speed | 2000rpm | |
| Max. stitch length | 5mm | 7mm |
| Needle | DP*5 #14-22 | |
| Special gauge | 60mm，70mm, 75mm, 80mm | |
| Machine series | Motor and control box | Auto foot lifter | Auto backtacking | Puller | |
| Direct drive motor | Direct drive servo motor | ||||
| -LA |
● |
||||
| -LA/FL |
● |
● |
|||
| -LA/PL |
● |
● | |||
| -LA/FL/PL |
● |
● |
● |
||
| -LA/BT/FL |
● |
● | ● |
|
|
|
-LA/BT/FL/PL |
● | ● | ● |
● |
|
GC8422/8722-LA420/520/650
Twin needle direct drive thread trimmer sewing machine, small hook / large hook long arm 420MM / 520MM / 650MM
TECHNICAL SPECIFICATION
| T-8422-LA420/520/650 | T-8722-LA420/520/650 | |
| Arm pocket size |
420mm*125mm 520mm*125mm 650mm*125mm |
|
| Rotary hook size | Small hook |
Large hook |
| Max. sewing speed |
2000rpm |
|
| Max. stitch length |
5mm |
7mm |
|
Needle |
DP*5 #14-22 |
|
|
Machine series |
Motor and control box | Auto foot lifter | Auto backtacking Auto thread wiper |
Puller | Automatic thread trimmer |
| Direct drive AC servo motor | |||||
|
-LA |
● | ● |
● |
||
|
-LA/FL |
● | ● | ● |
● |
|
|
-LA/FL/PL |
● | ● | ● | ● |
● |
Size of stand&table
| normal | 1.2m * 0.535m | |
| LA420 | 1.2m * 0.535m | With caster |
| LA520 | 1.5m * 0.535m | With caster |
| LA650 | 1.5m * 0.535m | With caster |
| LA860 | 1.7m * 0.600m | With caster |

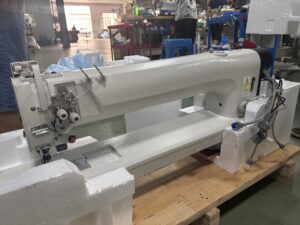

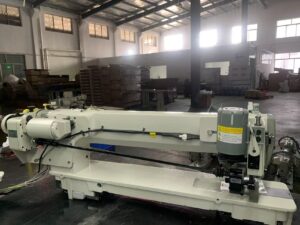

GC8722-LA650/FL/PL
