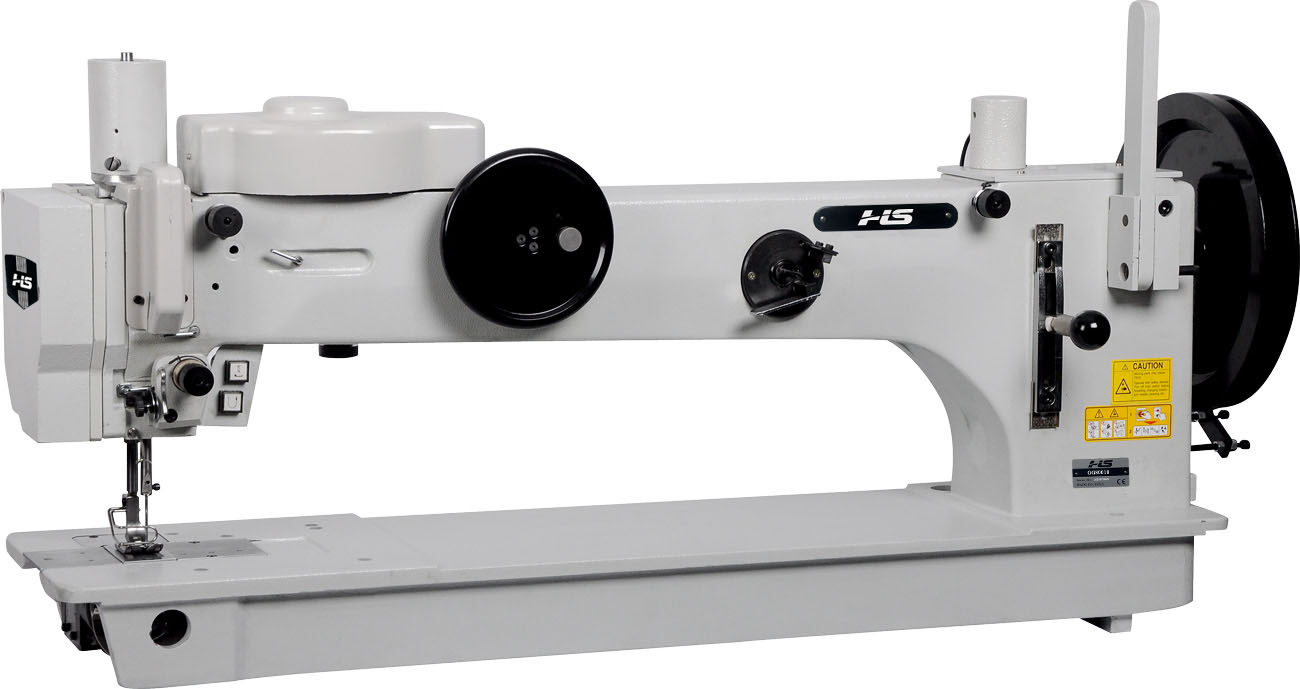

GG80018 :30 inch long arm bottom feed zigzag machine(working space:760x175mm)
GG80018-H: 30″long arm and larger working space zigzag machine(working space: 760X275mm).
GG80018-P:30 inch long arm bottom feed zigzag machine with puller(working space:760x175mm)
GG80018-HP :30″long arm and larger working space zigzag machine with puller(working space: 760X275mm).
1. This machine adopting connecting rod for thread take-up,and shuttle hook,bottom feed mechanism;
2.Customer can choose top puller feed type models for very heavy-weight materials;
3. Stitch length up to 10mm and large zigzag width(12mm);
4.With pneumatic foot lifter and pneumatic reverse sewing.Presser foot lift can reach 20mm;
5.Excellent stitches and constantly tight stitches,even thick threads for heavy-weight material;
6. Adopting the large shuttle hook;

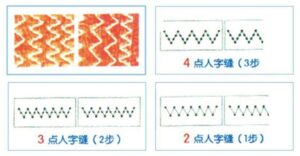

7.Both of machines are with 3 cams to form 3 different standard zigzag stitches(1 step 2 points zigzag, 2 steps and 3 point zigzag, 3 steps and 4 point zigzag).
TWO TYPES PULLER
