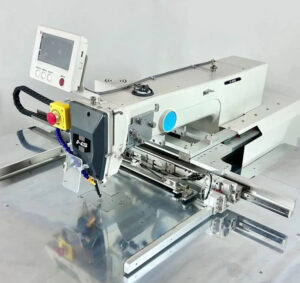

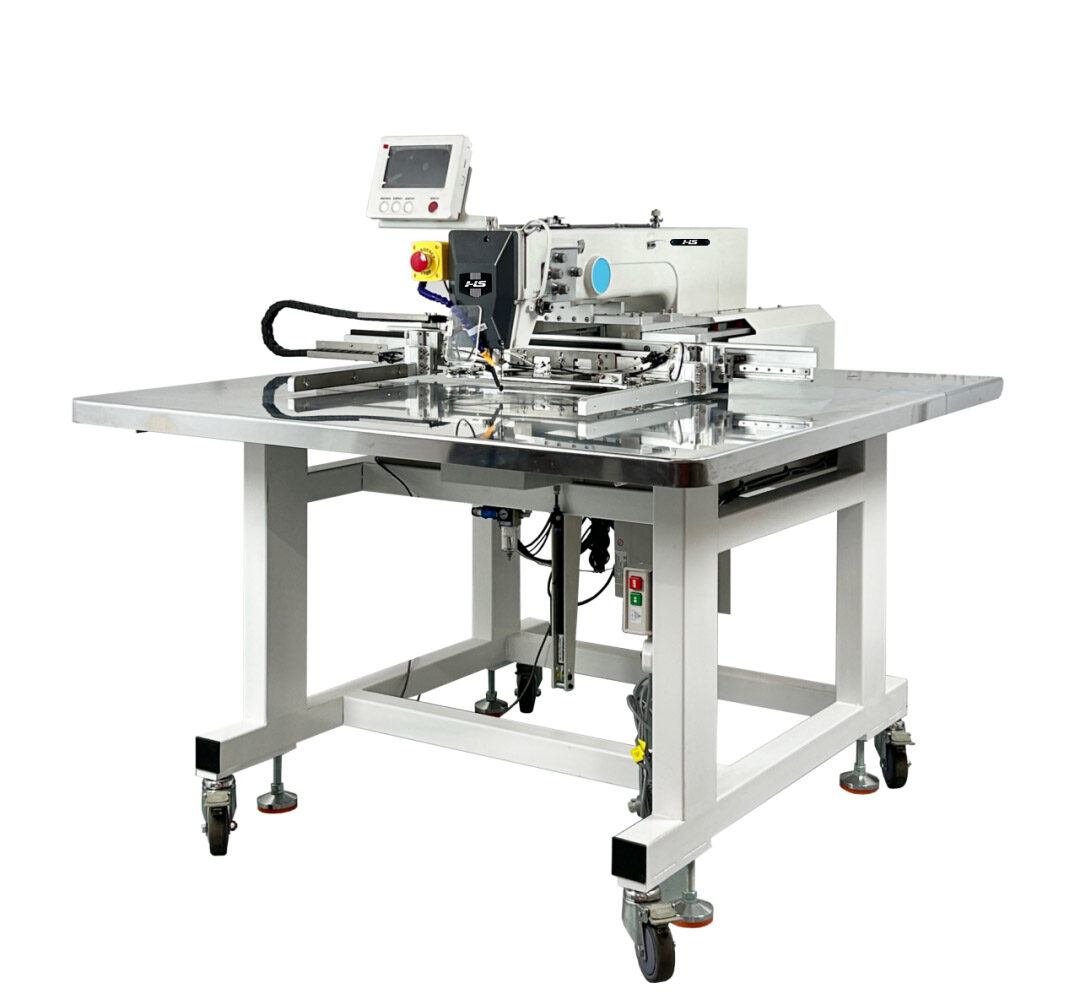

HLS-6040HP-6 6times hook heavy duty pattern sewing machine 60*40cm

1.with 6times hook;
2.New arm bed to be longer and over 20KGS heavier compared with old version,more stable for sewing;
3.Upgrade pneumatic durkopp alder type thread tension device to decrease thread broken more than 20%;
4.Fast change module;

Single-needle lockstitch sewing

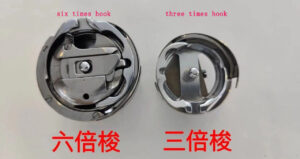

Types of rotary hooks:6 times large rotary hook
(XxY)Sewing range:600x400mm
Maximum sewing speed：2000RPM, with a stitch length of (3.0)
Stitch length:0.1~16 (minimum setting unit: 0.1mm)
Maximum number of stitches:20,000 stitches per sewing pattern
number of pattern storages:It comes with 1,000 built – in patterns. It can be connected to an external USB flash drive and supports remote transmission via the Internet.
Height of the outer presser foot:40mm
Height of the middle presser foot:Maximum 25mm
Electronic middle presser foot function: Freely switch the height for thin materials, thick materials and patterns.
Stroke of the middle presser foot:4～10mm
Main shaft motor 750W direct-drive servo motor
Needle:Dy*3 #25-#27
Operation panel:5.7″ liquid crystal touch screen, supporting 12 languages
Sewing thread specification:300D-1500D
Machine dimensions:1350*1550*1250mm
Packaging dimensions：1400*1600*1300mm
Net weight：290kg
Gross Weight:358kg
Power supply:AC220V
