HLS-G3520R-5 5times hook pattern sewing machine for jumbo bag
1.Widely use on Jumbo bag belts;
2.Dahao separated new control system;Touching screen, easy and quick for pattern programming;
3.Working space:X30cm Y20mm;
4.Designed as MITSUBISHI type;
5.5 times heavy duty hook;High speed,high efficiency;
Downlead:HLS-G3520R-5

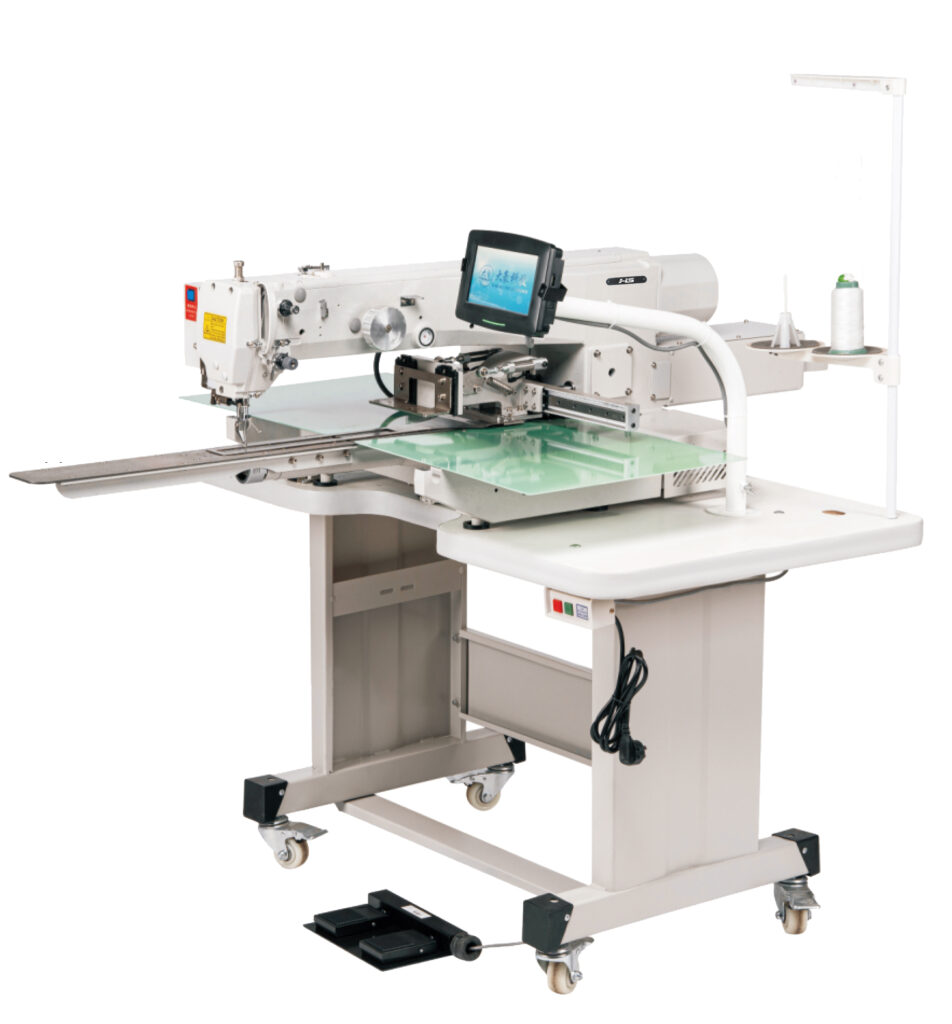

HLS-G3520R/4030R/5030R/6040R Mitsubishi type pattern sewing machine(Hook)
1.Classic Mitsubishi type,easy opeartion and maintanence;
2.Dahao separated new control system;Touching screen, easy and quick for pattern programming,Support USB disk input;
3.Taiwan guider,Single axis feeding structure,5pcs feeding guide rails;
4.Optional:thread broken inspection,double tension,sliding/rotating presser foot device,cap visor device,three times hook,etc
Download:HLS pattern sewing
HLS-G4030R(M) Mattress Automatic Trade Mark Pattern Sewing Machine
Upgrade on Mitsubishi type pattern sewing machine;
Dahao integrated system;Touching screen, easy and quick for pattern programming;
Lifting height is 5cm,Sewing scope:40X30cm;
Hook;
Space for putting material 46.5cm;
Volatage 220V,1phase,Power:1000Watt;
G.W 250KGS,Dimension 150*150*150cm;
Download:For trade mark mattress 4030
HLS-G5040RH-S two clamps pattern sewing machine for jumbo bag
Sewing area: 500mm in X (Horizontal) x 400mm in Y (Vertical)
– Max sewing speed: 1800 r.p.m
– Speed preset: 100-2700 rpm at discretion
– Stitch length: 0.1-12.7mm
– Thread take-up lever stroke: 105mm, Needle bar stroke: 46.8mm
– Needle size: DYx3-7*27# (standard), Hook: Rotating hook (6 times)
– Main motor: 220V/750W servo motor
Download: HLS-G5040RH-S
HLS-G5050RH-S two clamps pattern sewing machine for jumbo bag
-Sewing area: 500mm in X (Horizontal) x 500mm in Y (Vertical)
-Hook: Rotating hook (6 times),
-Max sewing speed: 1800 r.p.m
-Stitch length: 0.1-12.7mm
-Needle bar stroke: 46.8mm-Presser foot lift: 25mm for outer presser foot (pneumatic),
2 0 m m for middle presser foot (pneumatic)
-Needle size: DYx3-7*27# (standard)
-Main motor: 220V/750W servo motor
-Package dimension:2190X1270X1440mm
-Package gross weight:510kg
-Package net weight:422kg
Integrated weighted frame for stable high-speed running.Optimized 90 degree hook rotation;
Easy bobbin change & low thread breakage;
Synchronous eccentric cam assembled by bearing, smooth& durable transmission;
Auto lubrication system for easy maintenance;
Aerospace aluminum main shaft coupling, high strength &low vibration. Auto knife thread winder;
L-type adaptive dual-cylinder presser plate, firmly presses uneven fabric. Custom plate for fast loading/unloading;
Dual-cylinder structure anti-deformation, more durable than single cylinder;
New design trimmer system to confirm 100% thread cutting on Emergency Stop;
Dahao separated new control system;Touching screen, easy and quick for pattern programming;
Download: HLS-G5050RH-S

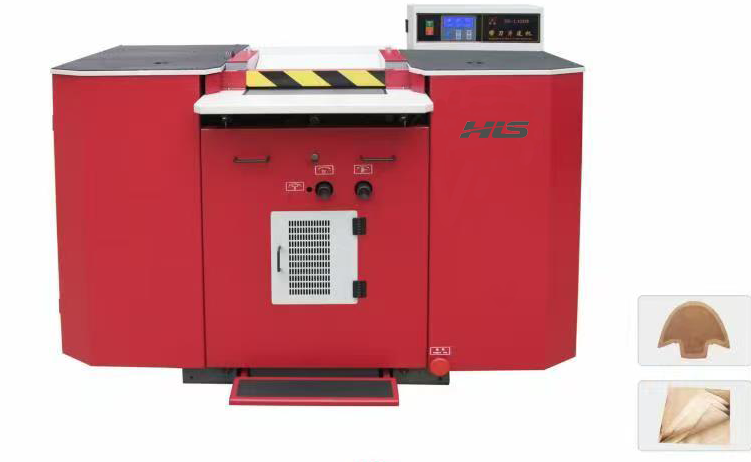

HLS-L420W PLC band knife splitting machine
Download leaflet:HLS-L420W
Splitting thickness displayed by LCD, the infinitely variable adjustment of feeding. accurate number counting function.
With automatic feed registration device, no need to adjust cutting tool.
Automatic pause system when leather material entangles in and automatic detection system of electronic phase·
Freestanding set of dust absorbing and knife grinding dust absorbing device.
The accurate rail makes the movement of flying wheel more reliable, and the replacement of band knife more easily and conveniently.

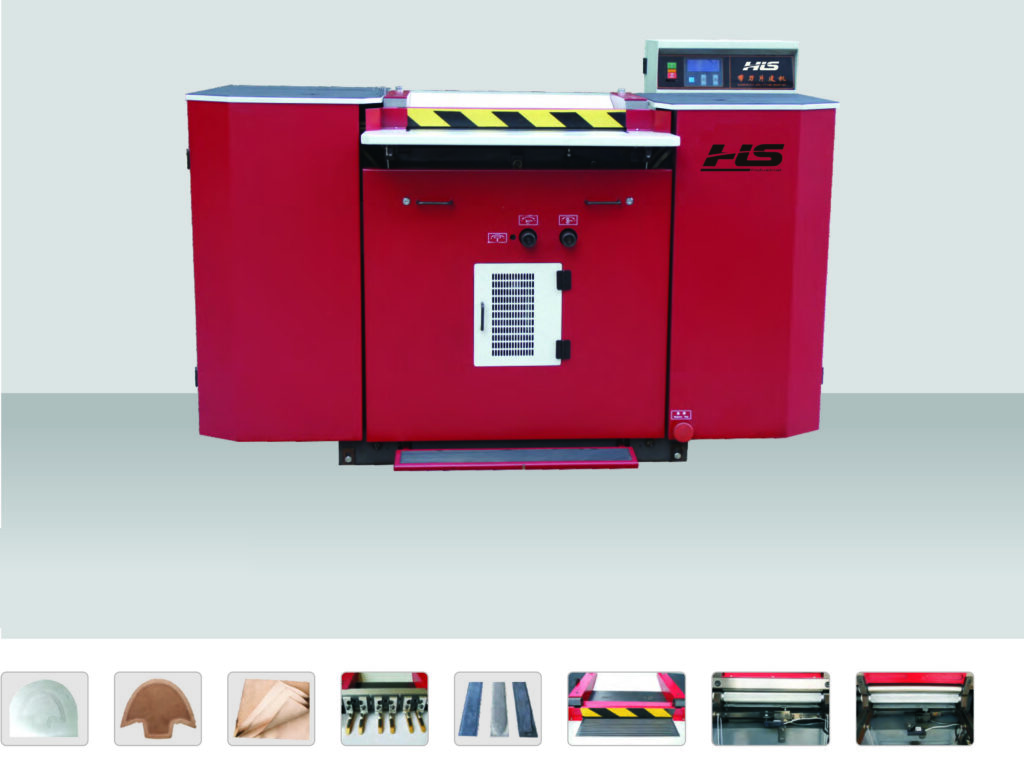

HLS-L620W PLC band knife splitting machine
Download:HLS-L620W
Use PLC liquid crystal display to show the thickness of splitting;equippedwith feeding infinitely variable speeds and accurate tally function.
New-style panel makes feeding work more convenient and efficient.
Equipped with automatic cutting quit function.
It has an automatic belt-entangling shut down system and an electronic phase
automatic detection system.
Equipped with independent leather dust and sharpening dust suction device.
Equipped with an optical magnifying by which you can observe the sharpness of knife at any time.
Equipped with a single handle to automatically control start-up and adjust the sharpening device.To make splitting more accurate, it can adjust the tool clearance automatically.Automatic knife-feed positioning device makes adjusting knife unnecessary.Extra large flywheel makes knife operation more stable and splitting work more accurate.
Accurate track makes flywheel move reliably and makes it more convenient and faster to change tool belt.
Mechanical parts are lubricated permanently.
Matched with molds which have various functions
HLS167-10060 series lifting&rotating head templating sewing machine for heavy duty
Head lifting height 50mm;
360 infinite rotating, no reverse seaming,fast turning angle,high efficiency;
Large sewing range of 1000X600mm;
2 times horizontal hook;
Leaflet download:HLS167-10060
HLS5217C-106 lifting and rotating head templating machine for heavy duty(1000*600mm)
main functions:
head lifting height Max.50mm,360 degress roating
sewing scope 1000*600mm
Vertical hook 32mm,Stitch length 0.1-12.7mm
Three bolt drive feeding,Presser foot height O-20mm
Fast module clamping,Intergrated casting
Independent bobbin winder device
Electronic thread tension
Automatic trimmer,Needle cool system,RFID template recognition
Download:HLS5217C-106
